Accessories
a. 3 Axis MEMS Type Accelerometer(MA301)
- X, Y, Z 3-Axis Output
- Offset adjustment
- Required +5V DC power
- Output :±4V differential or 0.5V - 4.5V single ended outputs
- Galvanized isolation
- Responds to DC & AC Acceleration
- ±2g, ±5g, ±10g, ±25g, ±50g, ±100g customized model
- MEMS Type, External Amplifier Needed
- Sensitivity : 2V/g
- Dynamic Range : ±2g
- Frequency Range : 0 - 400Hz (Nominal, 3dB)
- Low Power Consumption (approx. 50mW)
- Operating Temperature : -40 - +85℃
- Power : 8 - 32V DC Power
- Output : ±4V Differential Output or 0.5 - 4.5V Single
- Ended Output
- Low Impedance Output Regardless of Cable Length
- Max Mechanical Shock : 2000g (0.1ms)
- Output Noise, Differential (RMS, typical) : 13µg/Hz1/2
- Rugged Anodized Aluminum Chassis
- Transducer type : Pressure transducer
- Frequency range : 20㎐~15㎑(±3㏈)
100㎐~10㎑ (±1㏈) - Sensitivity : 50㎷/㎩ ±5%
- Max. SPL : 124㏈
- Temperature range : -10 ~ +50℃
- Noise : Lin(20㎐~20㎑) < 100㎶
- "A"-weight < 30㎶
b.1/4” Microphone(MI17)
- Input Channel : 3-Ch. MEMS Sensor Signal Input(Lemo Conn.)
- Input Range : ±2g, 2V/g Sensitivity, 0 - 400Hz Range
- Output : 3 Ch., ±5V (BNC)
- Differential Amplifier : 1.25 Gain
- 1g Offset Adjustment Function
- Power : DC 9 - 12V or 9V Battery
- Power Switch, Power LED Display(Low Battery Alert)

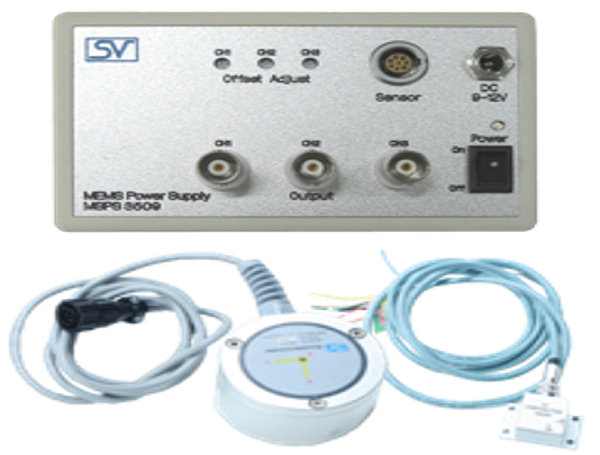

c. Amplifier for MEMS Sensor (MSPS)(MI17)
- Single Axis Sensor
- Seat Accelerometer
- Hand-Arm Vibration Sensor
- RPM Speed Sensor
- Temperature Sensor
d. Sensors
- USB - 2.0
- Camera - dock
- Bar-code - Scanner
- Expandable memory - SD Card
- Thermal/General - Printer
- Aluminium/Water - proof casing
e. Interfaces
- Realwave Desk
- DATS-lite NVE(Optional)
- BLS PC Software
f. Software:
Click here to download pdf
